3S 10A Bms Charger Protection Board For Pack Of 3 Li-Ion Lithium Battery

Brand: No Brand

Free Shipping

৳ 199৳ 333-40%

In Stock

SKU: CU-733415-1232053

Product DetailsSpecificationsSellerReviewsQuestions

Specifications

Product details of 3S 10A BMS Charger Protection Board for Pack of 3 Li-ion Lithium Battery

  • Short circuit protection.
  • Overcharge protection.
  • Over-discharge protection.
  • Overcurrent protection.
  • Balance Charging/Discharging
  • Charging voltage: 12.6V
  • Maximum output current: 10A
  • Can be applied to various 3.7V lithium core.
  • Compact size and lightweight.
  • Ensure the security of battery pack.

Product Details

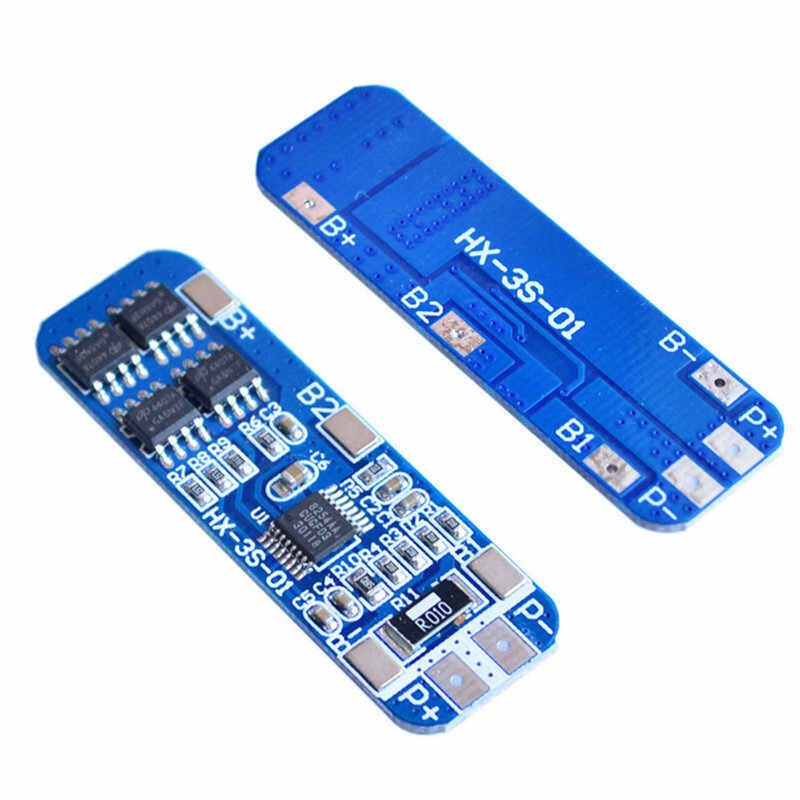

10A BMS Charger Protection Board for Pack of 3 18650 Li-ion lithium Battery Cell Features:

Size: 50x21x1mmMaximum discharge current: 10AOvercharge detection voltage: 4.25-4.35V±0.05VOver-discharge detection voltage: 2.3-3.0V±0.05VMaximum working current: 5A-8ATransient current: 9A-10AOperating temperature: -40~50 degreeStorage temperature: -40~80 degreeQuiescent current: <6uAInternal resistance: <60mΩ Service life: >30,000hours
Attention:

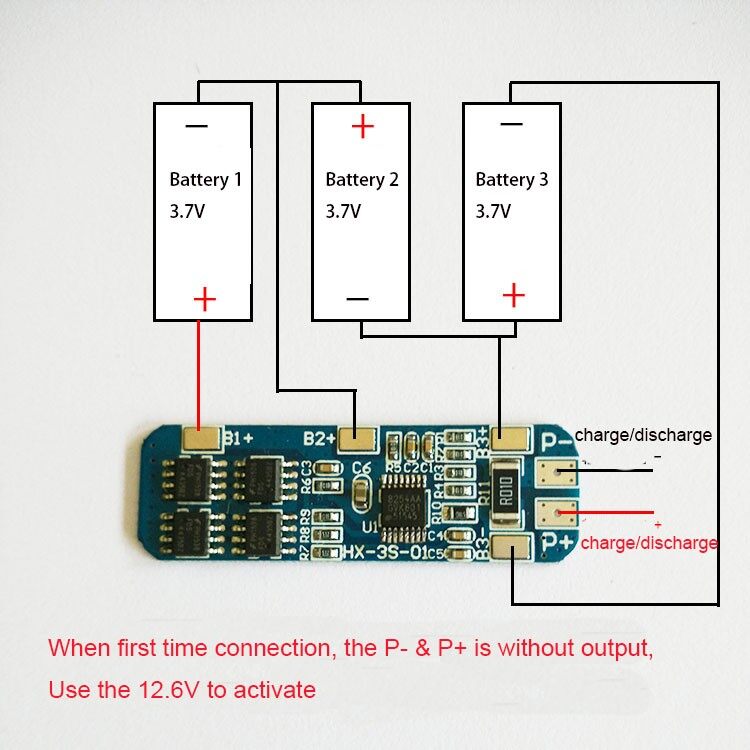

  • 1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/ 12.6V,Otherwise it will cause damage to the chip.
    2. After connection, first it need to charge activation, then will have the output.
    3. Do not mix the good battery and poor battery to use.
    4. The internal resistance of 3 battery capacity are closer will be better.
