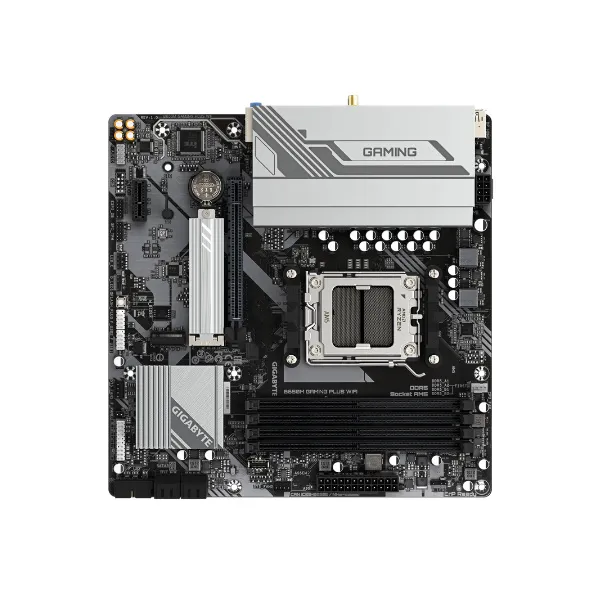

Gigabyte B650M GAMING PLUS WF AM5 Motherboard
Brand: Gigabyte
Model: B650M GAMING PLUS WF
Product Type: Desktop
Form Factor: Micro ATX
Body Color: Black
Chipset: AMD B650
Sockets Supported: AM5
CPU Supported: AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
Memory Type: DDR5
Memory Speed (MHz): Max 8000+(OC) MT/s Memory Modules
Memory Slot: 4
Memory Max: 256GB
HDD Interface: 4 x SATA 6Gb/s
HDD Slot: 4
SSD Interface: 2 x M.2
SSD Slot: 2
Graphics Chipset: AMD Radeon Graphics support
Expansion Slots: 1 x PCI Express x16 slots
Chip: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi: Wi-Fi 6E
Bluetooth: Bluetooth 5.3
Ethernet LAN: 10/100/1000Mbps
USB:
1 x USB Type-C
1 x USB 3.2 Gen
1 x USB 2.0/1.1
2 x USB 3.2 Gen
1 x USB Type-C
2 x USB 3.2 Gen 1
5 x USB 2.0/1.1
HDMI Port: 1
Display Port: 2
RJ-45 Ports: 1
TPM Port: 1
Audio Jack: 3
RGB Support: RGB
RGB Sync: RGB FUSION
RGB Connector: 1 x RGB LED Strip Header
BIOS Type: 1 x 256 Mbit Flash
BIOS Model: AMI UEFI BIOS
Power Consumption: 60W
Storage Interface: 6.0Gb/s
Audio Chipset: Realtek Audio CODEC, High Definition Audio
Audio Channel: 7.1
Supported Operating System: Windows 11, Windows 10
Dimensions: 28 x 27 x 7.1cm
Weight: 1.72kg
Warranty: 3 Years
Country Of Origin: Taiwan
Made in: China
