IR Infrared Flame Sensor Module

Specifications

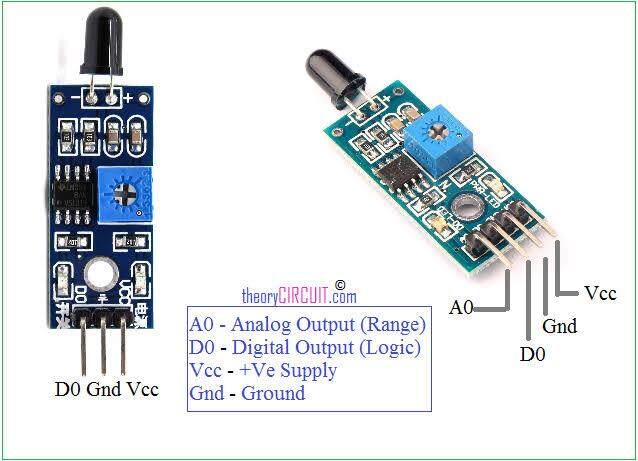

IR Infrared Flame Sensor Module
Analog voltage outpu
Digital switch outputs (0 and 1)
VCC: 3.3V ~ 5V
GND: GND
DO: board digital output interface (0 and 1)
AO: board analog output interface
Size: 3.2 x 1.9cm

Product Details

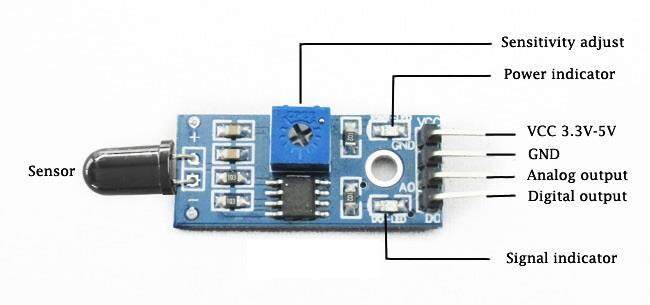

This module is sensitive to the flame, but also can measure ordinary light. Usually used as a flame alarm. On board, digital output interface can be directly connected with the microcontroller IO.Feature:Measure a flame or a light source of a wavelength in the range of 760nm-1100 nmMeasure angle about 60 degrees, it is sensitive to the flame spectrum.Accuracy adjustableOperating voltage 3.3V ~ 5VOutput-Analog voltage output-Digital switch outputs (0 and 1)With a mounting screw holePower indicator (red) and digital switch output indicator (green)Comparator chip LM393, it is stableFlame measure distance, lighter flame test can be triggered within 0.8m, if the intensity of flame is high, the measure distance will be increased.Interface(4-wire):VCC: 3.3V ~ 5VGND: GNDDO: board digital output interface (0 and 1)AO: board analog output interfaceSize: 3.2 x 1.9cmNote:Please keep a distance with flame, high temperature maybe burn out the sensor module.Package included:1 x Flame sensor module

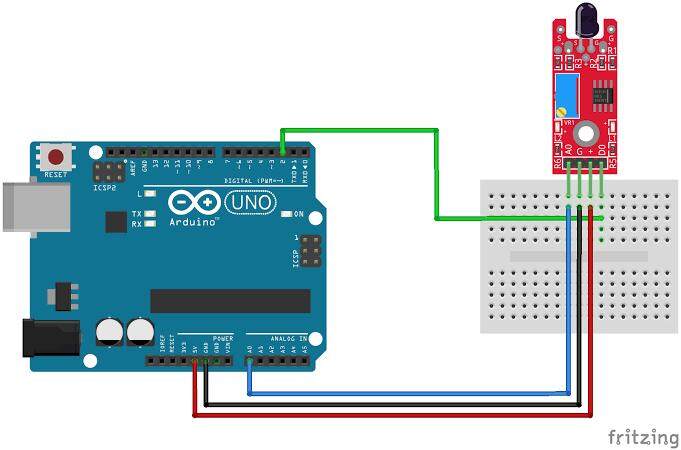

// Flame Sensor Moduleint LED = 13; // Use the onboard Uno LEDint isFlamePin = 7; // This is our input pinint isFlame = HIGH; // HIGH MEANS NO FLAMEvoid setup() { pinMode(LED, OUTPUT); pinMode(isFlamePin, INPUT); Serial.begin(9600);}void loop() { isFlame = digitalRead(isFlamePin); if (isFlame== LOW) { Serial.println("FLAME, FLAME, FLAME"); digitalWrite(LED, HIGH); } else { Serial.println("no flame"); digitalWrite(LED, LOW); }}
