⚙️ Specifications:

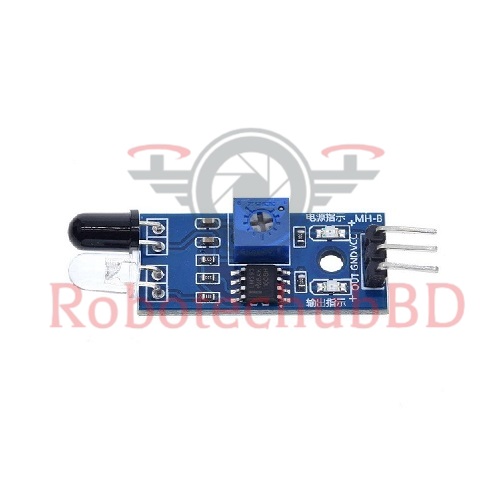

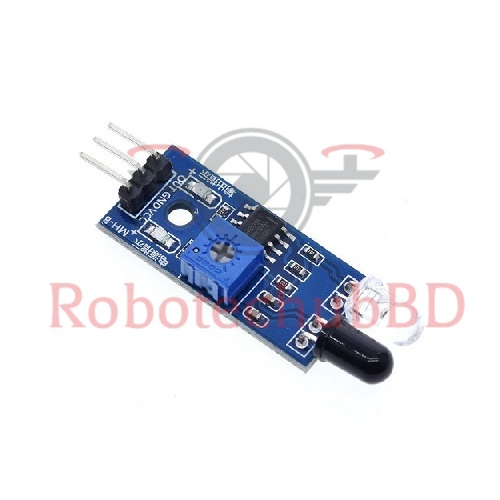

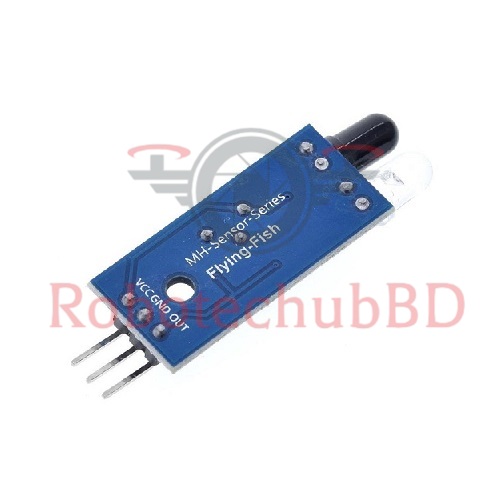

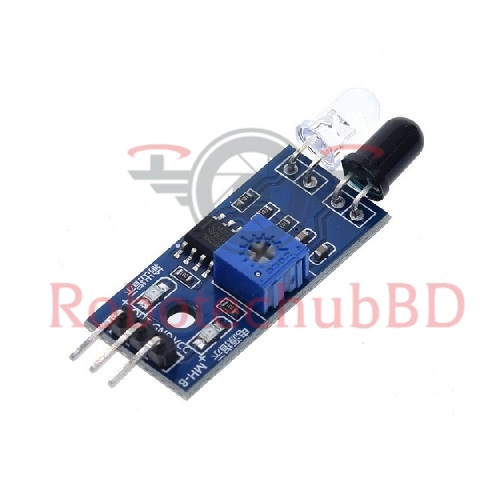

- Model: IR Obstacle Avoidance Sensor
- Operating Voltage: 3.3V – 5V DC
- Detection Range: 2 cm – 30 cm (adjustable via potentiometer)
- Output Type: Digital (High/Low)
- Interface: 3-pin (VCC, GND, OUT)
- Signal Type: TTL compatible
- Sensor Type: Infrared (IR) reflection-based
- Indicator LEDs: Power and obstacle detection indicators
- Response Time: < 2ms
- Operating Temperature: -10°C to +50°C
- Dimensions: Approx. 4.8cm × 1.4cm × 1.2cm
🌟 Key Features:
- 🔹 Automatic obstacle detection using infrared technology
- ⚙️ Adjustable sensitivity via onboard potentiometer
- 💡 Indicator LEDs for power and detection status
- 🧠 Compatible with Arduino, ESP32, ESP8266, and Raspberry Pi
- 🔧 Easy integration into line-following and collision-avoidance robots
- 🌐 Low power consumption for battery-operated systems
⚡ Applications:
- 🤖 Line-following and obstacle-avoiding robots
- 🚗 Smart vehicle navigation systems
- 🏠 IoT and home automation projects
- 🧠 Object detection and counting systems
- 🎯 Motion and proximity sensing
📦 Package Includes:
- 1 × IR Infrared Obstacle Avoidance Sensor Module
