- Product Description:Input Voltage Range: 2V to 24V
- Output Voltage Range: 5V to 28V (adjustable)
- Maximum Output Current: Up to 2A
- Efficiency: Up to 93%
- Switching Frequency: 1.2MHz (typical)
- Operating Temperature Range: -40°C to +85°C
- Overcurrent Protection Threshold: Adjustable
- Quiescent Current: 1μA
- Dimensions: Approximately 36mm x 17mm x 14mm (L x W x H)
- Weight: Approximately 3 grams

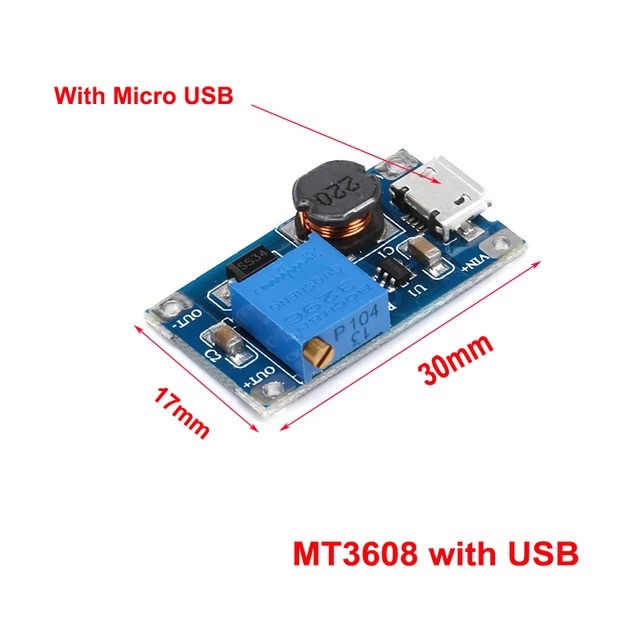

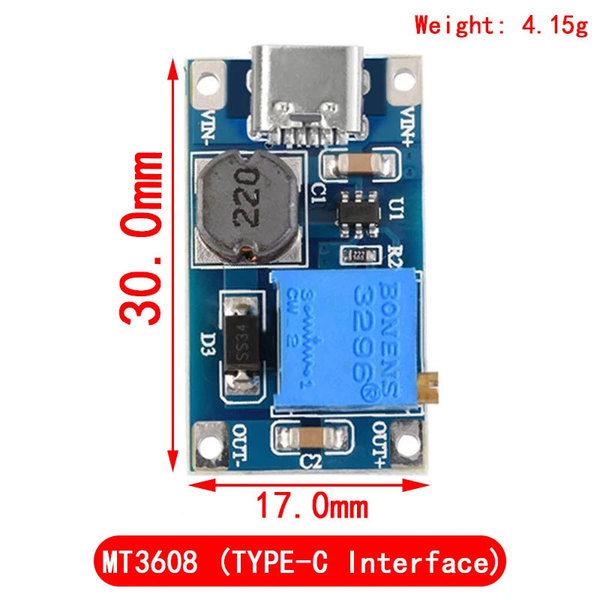

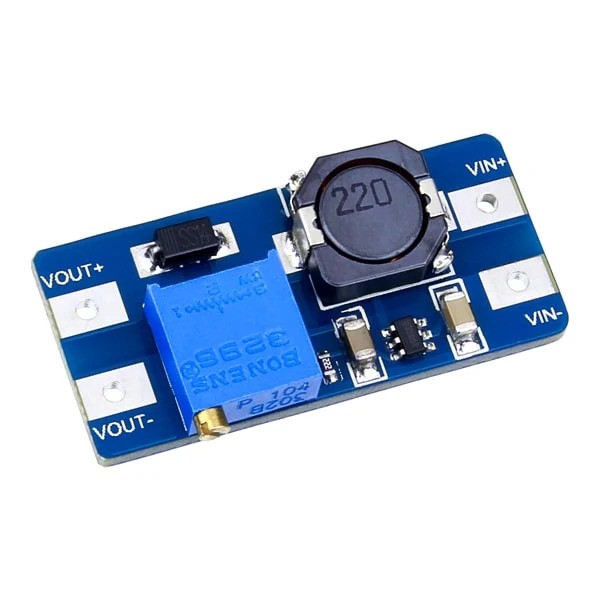

Product details of MT3608 2A DC-DC Converter 2-24V to 5-28V Adjustable Boost Module
- Product Description:Input Voltage Range: 2V to 24V
- Output Voltage Range: 5V to 28V (adjustable)
- Maximum Output Current: Up to 2A
- Efficiency: Up to 93%
- Switching Frequency: 1.2MHz (typical)
- Operating Temperature Range: -40°C to +85°C
- Overcurrent Protection Threshold: Adjustable
- Quiescent Current: <1μA
- Dimensions: Approximately 36mm x 17mm x 14mm (L x W x H)
- Weight: Approximately 3 grams
About this Item:
The MT3608 Boost Module is a compact and efficient voltage booster designed for a wide range of electronic applications. With its adjustable output voltage ranging from 5V to 28V and a maximum output current of 2A, this module offers flexibility and reliability in power supply solutions. Equipped with overcurrent protection and boasting high efficiency, it ensures stable and regulated output even under varying input conditions. Ideal for DIY projects, robotics, IoT devices, and more, the MT3608 Boost Module provides a cost-effective and compact solution for voltage boosting needs.
