MT6820 MT561 Universal LED LCD Monitor Motherboard replace T.V56 DS-V59 CCFL LVDS

Brand: No Brand

৳ 0

SKU:

Quantity:

Out of stock

Product Details Specifications Seller Reviews Questions

Specifications

MT561 / MT6820 is the driver board of LED/LCD Monitor. If the motherboard of your old monitor of any band is broken, then you can install this board to replace the broken board.
There is no problem of providing separate firmware on this board. Built-in firmware for all resolutions. You just make the jumper selection according to your panel resolution.
On the back of this board there is a jumper chart according to the resolution. You can also use this board as a monitor by attaching your laptop panel.
Some knowledge about inverter, LVDS Cable, Panel Voltage, Skin Resolution, Firmware Download, Firmware Installation is required to use the circuit.
PCB Version:MT6820-MD V2.0
Adaptive Device: 10-42 inch wide LVDS LCD
Max Resolution: 1920*1200
Main IC:HX6820-A
Support 1-channel VGA video input
VGA format most support FHD(1920X1080) 75Hz
Output most support double 8-bit 1920X1080LVDS display
Support SOG and infrared touch interface

Product Details

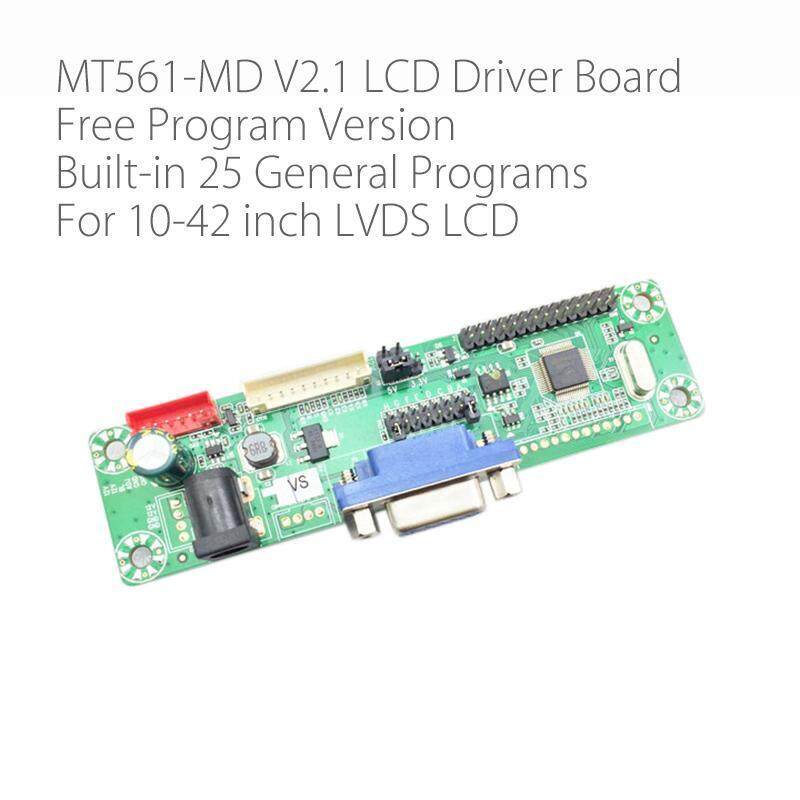

MT561-MD VGA+DC General LVDS LCD Driver Board for 10-42 inch LCD Monitor Panel Jump Cap DC 12V IN 1920x1200 Notice: The controller board already built-in 25 kinds general programs in the driver board, so you dont need to burn firmwares for it, all you need to do is :

1: choose the LCD resolution

< p style="margin:0;padding:8px 0;white-space:pre-wrap">2: choose the correct screen voltage jump cap.

How to choose Resolution for your lcd

< /div>
< /div>
< /div>

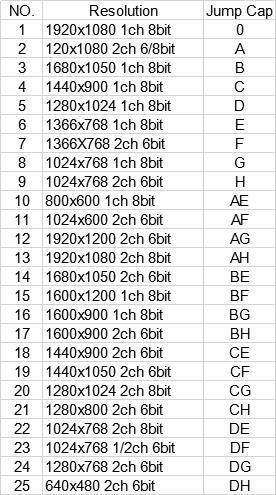

25 kinds of jumper cap, without programmer programming, through the ABCDEFG jumper cap settings, which can support most common LVDS LCD screen, Jumper Description printed on the back of the board is very convenient, the driver board with high-definition master chip program, Up to 1920 * 1200 resolution

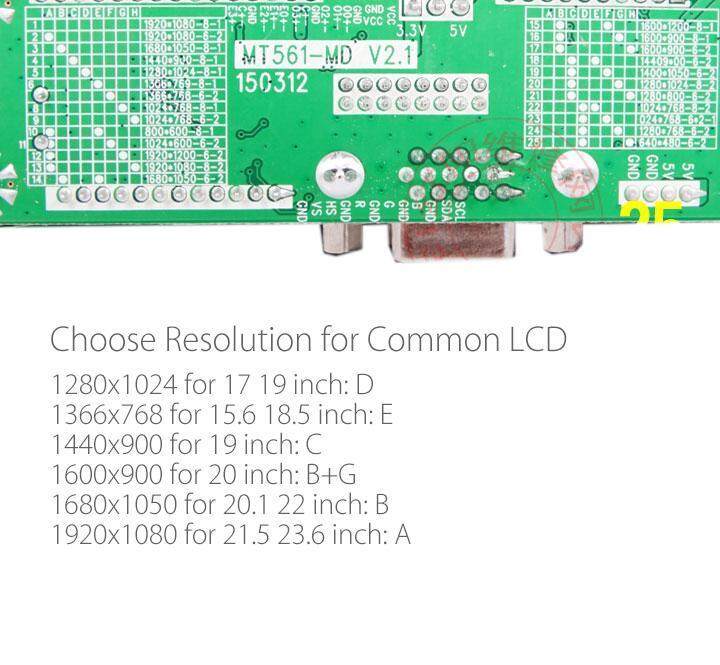

Common Resolution Panel Jumper Cap Setting:
17inch 19inch Panel: 1280*1024 D
15.6inch 18.5 inch panel: 1366*768 E
19inch wide Panel: 1440*900 C
20inch Panel: 1600*900 B+G
20.1inch 22inch Panel: 1680*1050 B
21.5inch 23.6inch Panel: 1920*1080 A
< /div>
mean resolution 1920*1080 LVDS cable 8bit single
 Supported resolutions: 800*600 1024*600 1024*768 1280*1024 1280*1024 1366*768 1400*1050 1440*900 1600*900 1600*1200 1680*1050 1920*1200

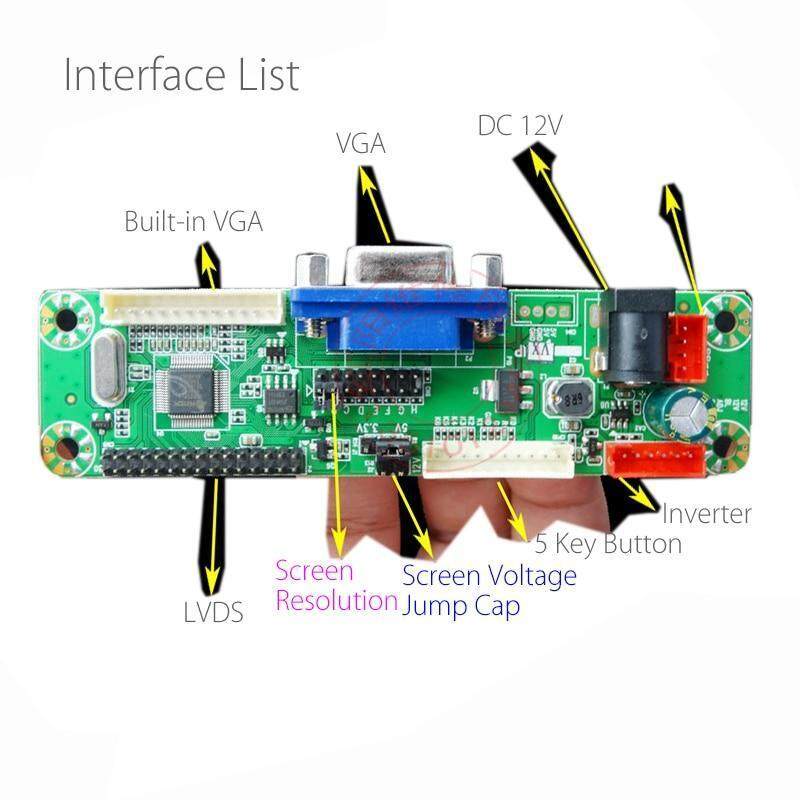

Instruction to connect the controller board to the LCD:
Take away the old inverter and old LVDS cable from the LCD panel. Connect the new inverter and LVDS cable to your LCD panel. Connect controller board with PC by VGA cable .Input power of 12V,4A.
