| Brand | Uniview |
| Model | UAC-B114-AF40G-W |
| Product Type | CC Camera |
| Form Factor | Bullet |
| Camera Type | Fixed |
| Usage | Indoor/Outdoor |
| Casing | Plastic |
| Body Color | Black and White |
| Mount | Wall / Vertical Pole |
| Working Distance | 20 Meter |
| Image Sensor | 1/3” CMOS Sensor |
| Mega Pixel | 4MP |
| Camera Resolution | 4MP: 2560(H) × 1440(V) |
| 1080P | 1920(H)×1080(V) |
| Day & Night | IR Cut Filter |
| Night Vision | Yes |
| Night Vision Mode | 24/7 Color Images |
| Slow Shutter | PAL: 1/25s-1/50000s, NTSC: 1/30s–1/50000s |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Field of View | H: 81.1° V: 41.0° D: 94.4° |
| Illuminator | Two IR illuminators |
| IR Range | 20 Meter |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON), 0 lux (IR on) |
| Lifetime | ≥60,000 Hours |
| Wide Dynamic Range (WDR) | DWDR |
| Image Enhancement | BLC |
| White Balance | Two Modes: Auto (default), Manual |
| Frame Rate | VI/AHD/CVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps |
| CVBS | PAL, NTSC |
| Built-in Mic | Yes |
| Camera audio | TVI: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps |
| CVI | 4MP@25fps, 4MP@30fps |
| Power Supply | DC 12V (±25%) |
| Power Consumption | Max 3.5W |
| Ingress Protection | IP67 |
| Surge Protection | 4KV |
| Certification | CE, FCC, UL |
| Made in | China |
| Dimensions | 154 x 66 x 66mm |
| Weight | 240 gm |

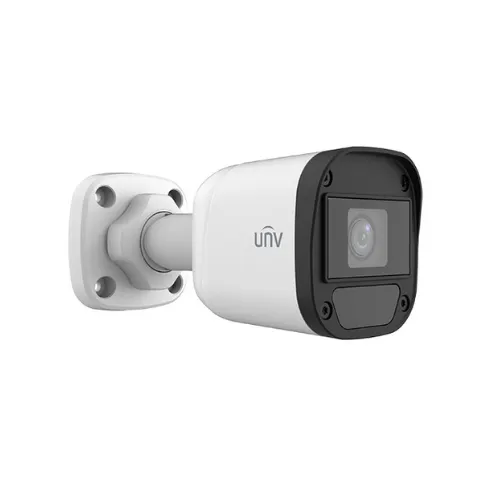

Uniview Uac-B114-Af40G-W 4Mp Colour Hunter Bullet Cc Camera
